The Two Module, 400 Watt RF Amplifier 80 Meters

This Class E RF amplifier will deliver up to 400 watts of RF output, depending on the input voltage and tuning parameters (current). The amplifier uses inexpensive IXDD414 Driver ICs - one for every 2 MOSFETs. Transient Voltage Supressors (TVS devices) are used on the gates, drain bus and modulated DC input to the RF amplifier to protect the MOSFETs from damage due to accidental overvoltage. The carrier DC voltage should be between 40 volts and 50 volts, and no more than 135 volts at full positive peak modulation.

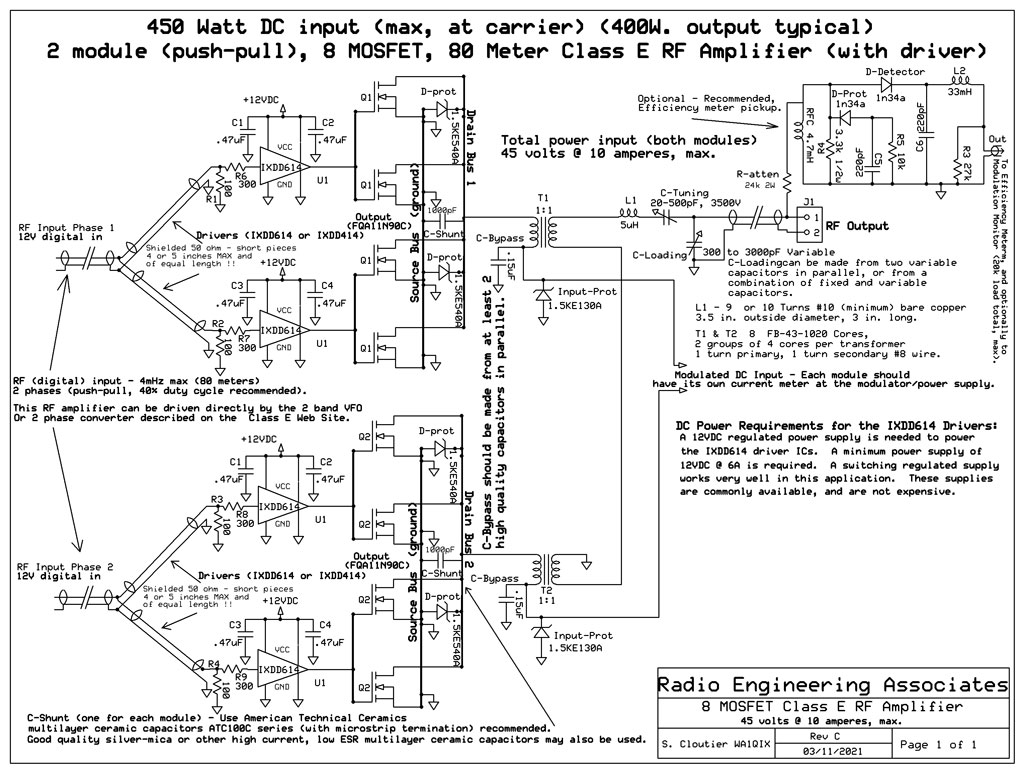

Click here for the schematic in PDF format

The 8 MOSFET RF amplifier consists of two identical 4 MOSFET RF amplifier stages connected together in a single ended push pull configuration. Each amplifier stage (module) includes an RF driver (IXDD614 or IXDD414 ICs), one IC for every 2 MOSFETs. The driver IC inputs are connected together to form a semi "bus", with a 300 ohm series resistor and a 100 ohm termination resistor connected to ground at each end of the driver bus, forming a 50 ohm termination. The drivers are connected to the VFO using 50 ohm coaxial cable.

Each driver bus is driven out of phase with the other, so when one is "on" the other is "off". The outputs are also combined out of phase, giving the single ended, push pull configuration. TVS (TransZorb) devices are used on the drain busses, and on the modulated DC input to each amplifier stage.

Construction Notes: The shunt capacitors C-Shunt in the schematic are ATC (American Technical Ceramics) ATC100C series capacitors, 1000pF, 20% with MicroStrip (MS) termination. The MicroStrips are made from solid silver, and make it very easy to install and solder the capacitors into the circuit. Other good quality, high current multilayer ceramic capacitors may be used, as well as good quality, high current silver-mica capacitors.

The .15uF RF bypass capacitors (C-Bypass) are made from 2 orange drop capacitors in parallel. 2 or 3 capacitors may be used in combination to obtain the desired capacitance value. The capacitors should by high current, low ESR (series reactance-resistance) good quality capacitors.

Note: The exact value of the RF bypass capacitors is not critical. Anything between .12 and .17 uF will work very well. If you are using a pulse width modulator, the RF bypass capacitor becomes part of the last capacitor in the PWM filter, and the value of the bypass capacitor must be known when building the filter.


The MOSFET Drivers

The transmitter uses IXDD614 or IXDD414 driver ICs, one for every 2 MOSFETs (on 75 meters). Each driver IC has its own RF bypass capacitor, connected from the VCC to the ground plane. The total power requirement for the driver ICs on 75 meters (all 4 drivers) is around 5 or 6 amperes at 12VDC. A switching regulated power supply can be used for this purpose, and these types of supplies are widely available and at good prices.

The output terminal of each of the driver ICs is connected directly to the gates of 2 of the FQA11N90 output MOSFETs. In this particular example, the gate leads of the FQA11N90s are bent in such a way as to faciliate a direct connection, and the output of the IXDD driver IC is connected to the junction of the gate leads. A small bus can also be used. The ground terminals of each driver ICs are connected directly to the source bus ground, and the tab (also ground for the driver ICs) is bolted directly to the heat sink. All interconnecting leads should be kept as short as possible to minimize stray inductance, particularly the driver RF bypass capacitor connections.

The RF input to the drivers is delivered via 50 ohm coax cable (RG58 or similar 50 ohm thin cable), and each cable is terminated by a 2 100 ohm resistors, one at the end of each feeder coax cable. The combined terminations of both of the 2 driver ICs per module form a 50 ohm termination.

The gate waveform produced by a single IXDD614 or IXDD414 driver driving 2 FQA11N90 MOSFETs is very good on 75 meters, and approaches a true square wave on 160 meters. This results in a very stable and efficient class E amplifier.


RF Output Transformers

This 2 module class E RF amplifier uses 2 RF output transformers, one for each module. The RF output transformers are each construted using 8 FB-43-1020 (type 43) cores, stacked in 2 groups of 4 cores each, 8 cores per transformer. The primary and secondary windings consist of a single loop of #8 solid copper, insulated wire. The picture shows the output transformers, as installed in the RF amplifier. The dotted yellow lines show the primary windings, and the dotted orange lines show the secondaries.

The primaries consist of a single U shaped loop of wire, and the secondaries consist of a similar U shaped loop, running in the opposite direction. The 2 secondaries are constructed using a single run of wire, running between the 2 transformers, however there is no reason why the secondaries could not be constructed from individual U shaped pieces, connected together using split bolts.

The primary windings are soldered directly to their respective drain busses on one end of the U, and to the bypass capacitors at the other end of the U. The ends of the primary U's nearest to the center of the transformer are connected to the drain busses, and the outside ends of the primary U's are connected to the RF bypass capacitors. The secondaries are connected directly in series. Using this configuration, the primaries are out of phase with each other, and this is necessary for single ended, push-pull operation.
